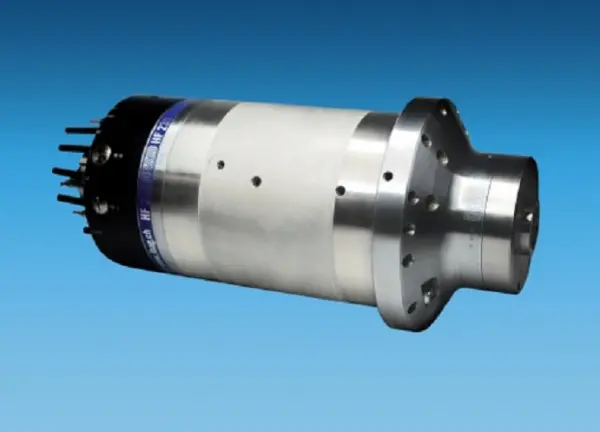

HF 230 AI 20 Large Spindle
[HF 230 AI 20]
Click to Enlarge
HF 230 AI 20 Large Spindle Specifications:
Maximum Speed:
24,000 RPM
S6-40% (Power):
19.5 kW
S1-100% (Power):
15 kW
S6-40% (Torque):
77 Nm
Grease (Speed):
20,000 RPM
S1-100% (Torque):
59 Nm
Tooling:
HSK63A
Quantity:
Add to Quote
HF 230 AI 20 Large Spindle Files:
HF 230 AI 20 Large Spindle Drawing
HF 230 AI 20 Large Spindle 3D Model
HF 230 AI 20 Large Spindle HP/Torque Curve
