Precision Chuck Features

• Ideal solution for milling, turning or grinding.
• The strongest and most accurate vacuum workholding method.
• Vacuum chucks available in various sizes and grid spacing.
• Tombstone fixtures for horizontal applications available.
• Special chuck sizes and configurations possible.

CNC Machining Applications for Witte Grid Chucks

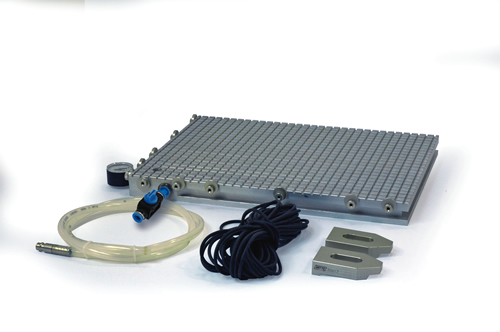

Witte grid chucks are the perfect universal solution for simple shaped components. Various grid patterns are available to suit the part surface quality, from smooth to rough. Simply install the proper size O-ring seal into the groove under your part material, and obtain solid vacuum clamping. Applicable to milling, turning and grinding, the Witte Grid Type chuck will provide the highest holding force, and best accuracy possible for your vacuum chuck system.

Custom Applications of Grid Vacuum Chuck Systems

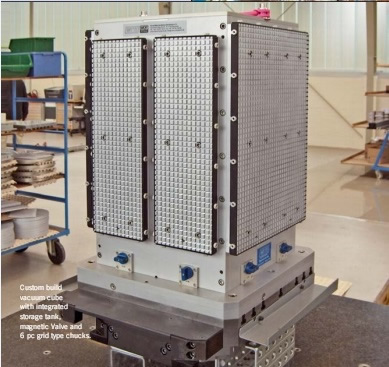

Witte grid  chucks are available in rectangular shapes for milling and grinding, as well as circular designs for CNC lathes. Fine grid patterns are possible for smaller parts, as well as special designs in steel, precision ground to provide super flatness and exceptional part accuracy. Horizontal tombstone fixtures are also possible for a variety of part and machine configurations.

A wide variety of standard sized Witte Grid Type chucks are available from stock, as well as modular versions that can be assembled to create a custom vacuum chuck system. Ideal to use as a base vacuum chuck which can support adapter chuck plates for Witte Vac Mat, Witte Micro Porous, and Witte Small Parts chuck systems. Custom Witte Grid Type vacuum chucks can also be supplied for contoured and curved parts, typically used for large, aircraft component milling and friction-stir welding.

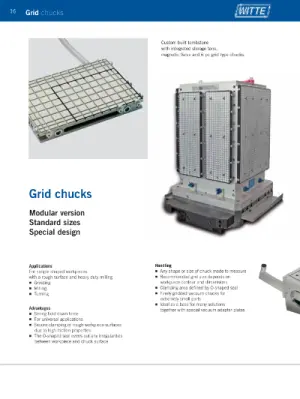

Grid Chuck System Specs and Information

View technical information, applications, part diagrams and replacement part numbers, and more.
Learn more about our Grid Type Chucks

Contact IBAG North America for Grid Type Precision Chucks Today

Contact IBAG North America to determine which Witte Vacuum Pump will successfully support your Grid Type chuck, as well as accessories and O-ring seal material to guarantee the best performance for your vacuum workholding needs. Request a quote or give us a call at 203-407-0397 to get your order started.  For other helpful resources, check out our IBAG Video Resources.
